Geometry + ellipse physics from input.ctl
Este ejemplo crea la geometría de falla desde input.ctl y luego aplica el modelo elíptico de 7 parámetros.
Salida:
resumen de geometría base y rigidez por subfalla,
mapeo elíptico (rupture times + slip físico),
cálculo de momento total \(M_0\) y magnitud \(M_w\),
vista en planta (x-y) y sección x-z.
[ ]:
from pathlib import Path
import sys
import numpy as np
import matplotlib.pyplot as plt
def find_project_root(start: Path) -> Path:
for p in [start, *start.parents]:
if (p / 'kdellipspy').exists():
return p
raise FileNotFoundError('No se encontro PROJECT_ROOT con carpeta kdellipspy.')
PROJECT_ROOT = find_project_root(Path.cwd().resolve())
KIN_ROOT = PROJECT_ROOT / 'Kinematic_inversion'
INPUT_CTL = KIN_ROOT / 'input.ctl'
if not INPUT_CTL.exists():
raise FileNotFoundError(f'No se encontro input.ctl en {INPUT_CTL}')
if str(PROJECT_ROOT) not in sys.path:
sys.path.insert(0, str(PROJECT_ROOT))
from kdellipspy import AxitraForwardModel
# Compatibilidad con celdas existentes
root = KIN_ROOT
input_ctl = INPUT_CTL
[5]:
input_ctl = root / 'input.ctl'
fm = AxitraForwardModel(str(input_ctl))
cfg = fm.cfg
geom_base = fm.build_geometry()
midpoint_model = np.array([
0.5 * (float(p.min_val) + float(p.max_val))
for p in cfg.inversion_params.parameters
], dtype=float)
if midpoint_model.size != 7:
raise ValueError(f'Se esperaban 7 parametros, pero hay {midpoint_model.size}.')
geom = fm.build_geometry_with_ellipse_slip(midpoint_model)
m0_total, mw_total = fm.estimate_total_moment_and_mw(midpoint_model, geometry=geom)
mu_values = np.array([sf.mu_pa for sf in geom_base.subfaults], dtype=float)
area_values = np.array([sf.area_m2 for sf in geom_base.subfaults], dtype=float)
print('Input:', input_ctl)
print(f'Fault size [m]: Lx={geom_base.length_strike_m:.1f}, Ly={geom_base.length_dip_m:.1f}')
print(f'Subfault grid: {geom_base.nx} x {geom_base.ny} = {geom_base.nsubfaults}')
print(f'Strike/Dip [deg]: {geom_base.strike_deg:.1f}/{geom_base.dip_deg:.1f}')
print(f'Source depth [km]: {geom_base.source_depth_m/1000.0:.2f}')
print(f'Area subfault [m2]: min={area_values.min():.3e}, max={area_values.max():.3e}')
print(f'Rigidity mu [Pa]: min={mu_values.min():.3e}, max={mu_values.max():.3e}')
print(f'Rupture velocity (model) [km/s]: {geom.rupture_velocity_km_s:.3f}')
print(f'M0 total [N.m]: {m0_total:.6e}')
print(f'Mw total: {mw_total:.4f}')
Input: [PROJECT_ROOT]/Kinematic_inversion/input.ctl
Fault size [m]: Lx=40000.0, Ly=40000.0
Subfault grid: 10 x 10 = 100
Strike/Dip [deg]: 72.0/47.0
Source depth [km]: 75.00
Area subfault [m2]: min=1.600e+07, max=1.600e+07
Rigidity mu [Pa]: min=7.607e+10, max=7.768e+10
Rupture velocity (model) [km/s]: 2.000
M0 total [N.m]: 1.562353e+19
Mw total: 6.7292
[6]:

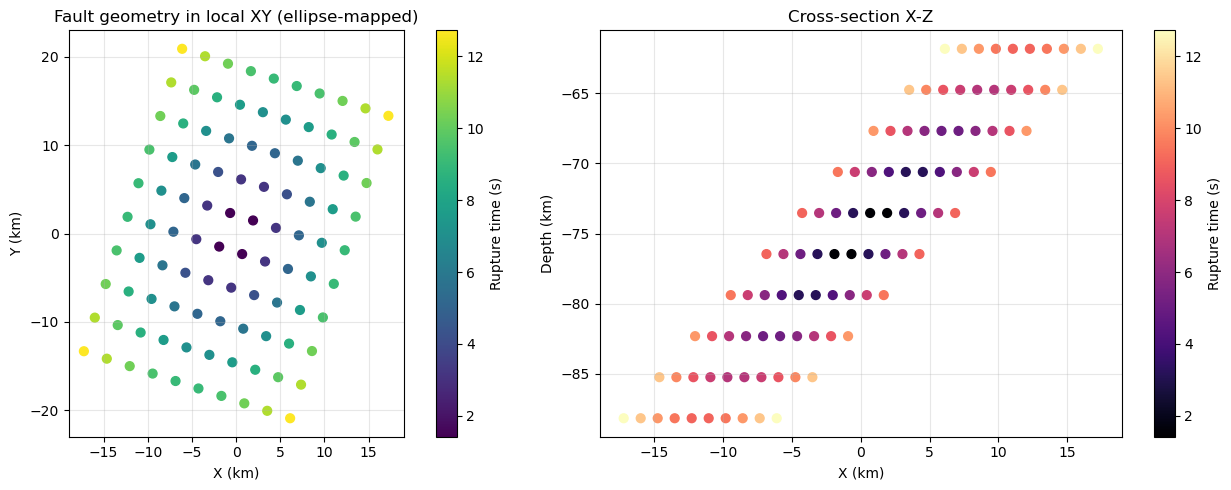

x = np.array([s.x_m for s in geom.subfaults]) / 1000.0
y = np.array([s.y_m for s in geom.subfaults]) / 1000.0
z = np.array([s.z_m for s in geom.subfaults]) / 1000.0
tr = np.array([s.rupture_time_s for s in geom.subfaults])
fig, ax = plt.subplots(1, 2, figsize=(14, 5))
# Planta XY
sc1 = ax[0].scatter(x, y, c=tr, cmap='viridis', s=40)
ax[0].set_title('Fault geometry in local XY (ellipse-mapped)')
ax[0].set_xlabel('X (km)')
ax[0].set_ylabel('Y (km)')
ax[0].set_aspect('equal')
ax[0].grid(True, alpha=0.3)
fig.colorbar(sc1, ax=ax[0], label='Rupture time (s)')
# Seccion XZ
sc2 = ax[1].scatter(x, -z, c=tr, cmap='magma', s=40)
ax[1].set_title('Cross-section X-Z')
ax[1].set_xlabel('X (km)')
ax[1].set_ylabel('Depth (km)')
ax[1].grid(True, alpha=0.3)
fig.colorbar(sc2, ax=ax[1], label='Rupture time (s)')
plt.tight_layout()
plt.show()
[11]:

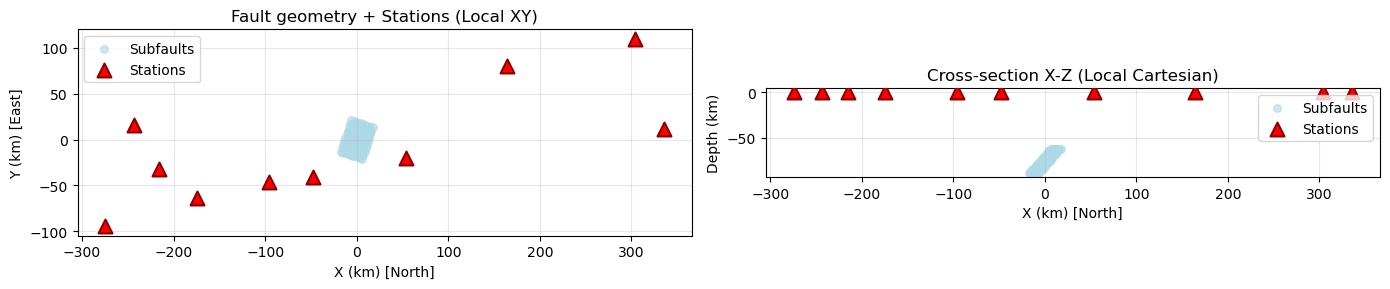

# Plot with stations in Cartesian coordinates
stations_cart = fm.stations_array(latlon=False) # [nstations x 4]: [index, x, y, z]
st_x = stations_cart[:, 1] / 1000.0 # Convert to km
st_y = stations_cart[:, 2] / 1000.0
st_z = stations_cart[:, 3] / 1000.0
fig, ax = plt.subplots(1, 2, figsize=(14, 5))
# Planta XY with subfaults and stations
ax[0].scatter(x, y, c='lightblue', s=30, alpha=0.6, label='Subfaults')
ax[0].scatter(st_x, st_y, c='red', s=100, marker='^', edgecolors='darkred',
linewidth=1.5, label='Stations', zorder=5)
ax[0].set_title('Fault geometry + Stations (Local XY)')
ax[0].set_xlabel('X (km) [North]')
ax[0].set_ylabel('Y (km) [East]')
ax[0].set_aspect('equal')
ax[0].grid(True, alpha=0.3)
ax[0].legend()
# Seccion XZ with subfaults and stations
ax[1].scatter(x, -z, c='lightblue', s=30, alpha=0.6, label='Subfaults')
ax[1].scatter(st_x, -st_z, c='red', s=100, marker='^', edgecolors='darkred',
linewidth=1.5, label='Stations', zorder=5)
ax[1].set_title('Cross-section X-Z (Local Cartesian)')
ax[1].set_xlabel('X (km) [North]')
ax[1].set_ylabel('Depth (km)')
ax[1].set_aspect('equal')
ax[1].grid(True, alpha=0.3)
ax[1].legend()
plt.tight_layout()
plt.show()
print(f"Stations in Cartesian (local coords):")
for i, st in enumerate(fm.cfg.stations.stations, start=1):
print(f" {i}: {st.name:6s} X={st_x[i-1]:8.3f} km Y={st_y[i-1]:8.3f} km Z={st_z[i-1]:6.3f} km")
Stations in Cartesian (local coords):
1: AC01 X= 54.163 km Y= -20.087 km Z= 0.000 km
2: A30C X= -48.273 km Y= -40.729 km Z= 0.000 km
3: A18C X= -96.347 km Y= -46.650 km Z= 0.000 km
4: GO02 X= 164.204 km Y= 80.289 km Z= 0.000 km
5: AC04 X=-174.433 km Y= -63.810 km Z= 0.000 km
6: A10C X=-215.497 km Y= -32.183 km Z= 0.000 km
7: AC05 X=-243.263 km Y= 15.460 km Z= 0.000 km
8: A32C X=-274.466 km Y= -94.791 km Z= 0.000 km
9: PB19 X= 303.481 km Y= 110.129 km Z= 0.000 km
10: A24F X= 335.603 km Y= 10.998 km Z= 0.000 km
Forward model with axitra wrapper (Cartesian workflow)
Orden recomendado del flujo actualizado:
Parsear
input.ctly construir geometría base invariante.Aplicar el modelo elíptico de 7 parámetros (incluye \(\mu(z)\) y área por subfalla).
Calcular \(M_0\) y \(M_w\) para ese modelo.
Pasar estaciones y fuentes al sistema cartesiano local (
latlon=False).Calcular funciones de Green (
moment.green).Ejecutar convolución (
moment.conv).
Nota: en este ejemplo usamos sistema local x-y-z para mantener consistencia geométrica.
[ ]:
from src.forward_model import AxitraForwardModel
# Step 1: cargar parser/modelo de alto nivel
fm = AxitraForwardModel(str(input_ctl))
# Step 2: construir geometria/falla con un Vr candidato
geom_fw = fm.build_geometry(rupture_velocity_km_s=2.486)
# Step 3: construir instancia Axitra en cartesiano local
# latlon=False => estaciones convertidas a x/y locales y sources en x/y locales
ap = fm.build_axitra(
geom_fw,
fmax=None, # por defecto: 1/Delta / 2 desde input.ctl
duration=None, # por defecto: t2 - t1
latlon=False,
xl=0.0,
freesurface=True,
ikmax=100000,
aw=2.0,
)
print('Subfaults:', geom_fw.nsubfaults)
print('axitra sources:', geom_fw.nsources)
print('MT enabled:', geom_fw.mt_enabled)
print('Cartesian mode (latlon=False):', ap.latlon == False)
print('Axitra id:', ap.id, 'nfreq:', ap.nfreq, 'nsource:', ap.nsource)
=========================
Subfaults: 25
axitra sources: 150
MT enabled: True
Cartesian mode (latlon=False): True
Axitra id: 797 nfreq: 256 nsource: 150
[ ]:
# 1) Green functions (puede tardar dependiendo de la malla y frecuencia)
ap = fm.green(ap, quiet=True)
# 2) Convolution con source_type=1 (Ricker), usando hist generado desde la geometria
t, sx, sy, sz = fm.conv(
ap,
geom_fw,
source_type=1,
t0=float(fm.cfg.ellipse.t0),
quiet=True,
)
print('Shapes:', t.shape, sx.shape, sy.shape, sz.shape)

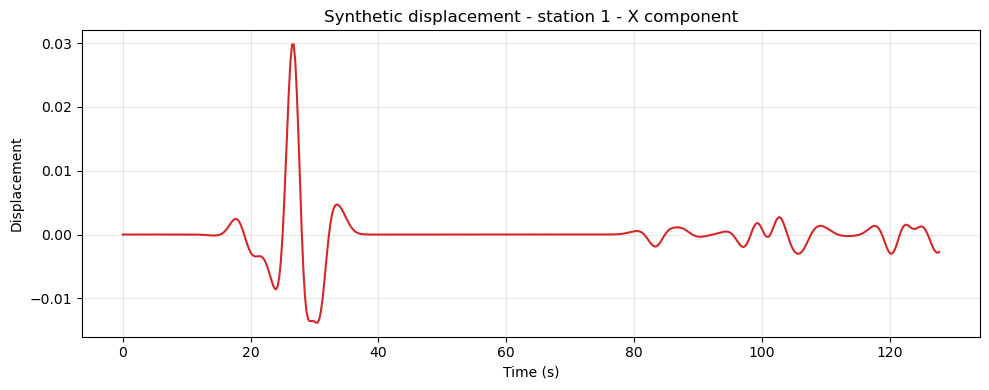

# Quicklook: componente X para la primera estacion
plt.figure(figsize=(10, 4))
plt.plot(t, sx[0, :], color='tab:red', lw=1.5)
plt.title('Synthetic displacement - station 1 - X component')
plt.xlabel('Time (s)')
plt.ylabel('Displacement')
plt.grid(alpha=0.3)
plt.tight_layout()
plt.show()
try:
ap.clean()
except Exception:
pass
running axitra Moment Version 20212403.1
running openMp on 6 threads
with 150 source(s) and 7 receiver(s) and 2 layer(s)
................. with a free surface at depth Z=0
distance unit is detected as meter
freq 256/ 256 iter= 279 Done
[PROJECT_ROOT]/Kinematic_inversion/axitra/axitra ran sucessfully
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Moment (Nm): 1520000000000000.0
Moment (Dyne.cm): 1.5200000000000000E+022
Moment (Nm): 29600000000000000.
Moment (Dyne.cm): 2.9599999999999998E+023
Moment (Nm): 18900000000000000.
Moment (Dyne.cm): 1.8900000000000000E+023
Moment (Nm): 5.1900000000000000E+017
Moment (Dyne.cm): 5.1899999999999995E+024
Moment (Nm): 1.0300000000000000E+017
Moment (Dyne.cm): 1.0300000000000000E+024
Moment (Nm): 5.1400000000000000E+017
Moment (Dyne.cm): 5.1400000000000005E+024
Shapes: (512,) (7, 512) (7, 512) (7, 512)
running openMp on 6 threads
[ ]:
print('npts:', t.size)
print('dt :', float(t[1] - t[0]) if t.size > 1 else np.nan)
print('sx shape:', sx.shape, '(nstations, npts)')
512
